Specifications:

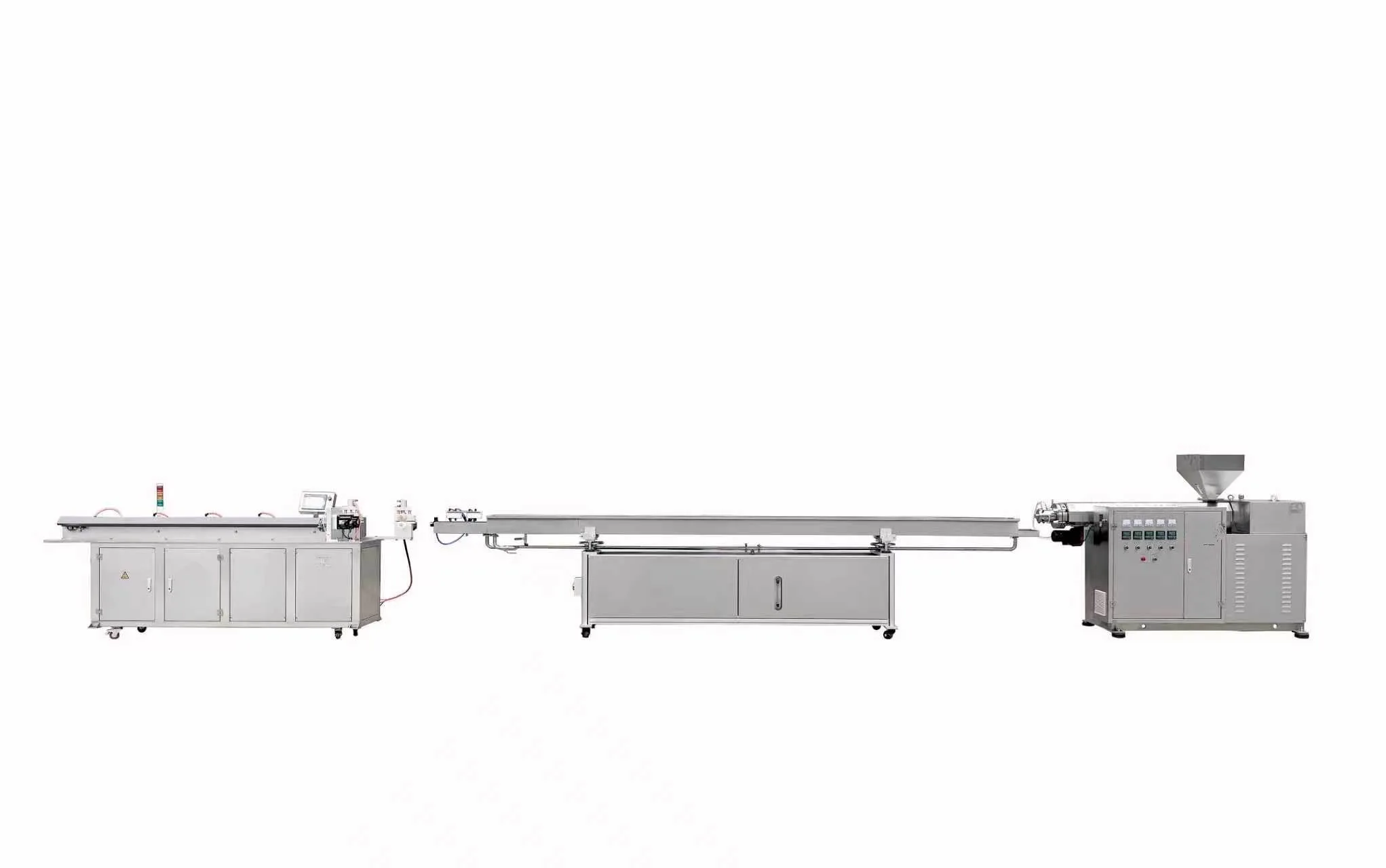

An extrusion machine (or extruder) is a manufacturing device that forces raw material through a shaped die to create continuous profiles, pipes, films, or other cross-sectional products. The core mechanism typically involves a rotating screw inside a heated barrel that melts, mixes, and pumps the material forward under pressure.
Main technical parameters：
|
SCREW DIAMETER: |
50mm |
|
SCREW ROTATE SPEED: |
10-90R/min |
|
CENTER HEIGHT: |
1000mm |
|
DRAW RATIO: |
28:1 |
|
MOTOR POWER: |
11KW |
|
TOTAL POWER: |
19KW |
|
WORKING VOLTAGE: |
380V |
|
OUTPUT: |
10-35kg/h |
|
EXTERNAL DIMENSION(L*W*H): |
2100mm*620mm*1660mm |
|
WEIGHT: |
650kg |
